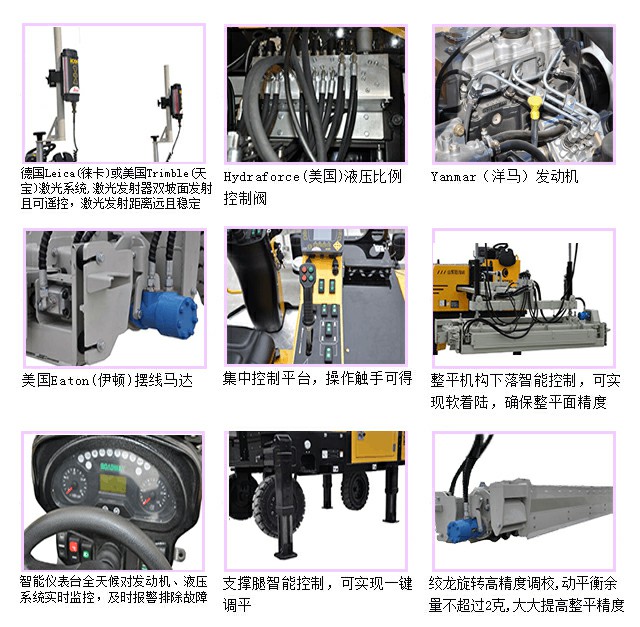

Features Overview
Technical Parameters
engine | Input water pressure | 0.5MPa | |
model | Yanmar | Levelling head | |
Types of | Diesel engine, double cylinder | Types of | Self-leveling |
power | 18.7kw / 3200rpm | width | 2500mm |
Fuel tank capacity | 60L | Paving way | Auger paving |
Lubricant amount | 1.6L | Auger Power | Hydraulic motor |
Fuel consumption | 292g / kWh | Exciting force | 1000N |
walk | Vibration frequency | 50Hz | |
drive | Hydraulic three-wheel drive | Leveling head height | 400mm |
Walking mode | Go straight | control precision | ± 1.5mm |
wheel | Solid anti-stab tire | Operation method | |
Outrigger | Four-leg support | Seat position | Front-loaded |
Driving speed | 0-3.6Km / h | forward, backward | Handle control, stepless speed change |
Laser control system | Turn | Steering wheel controls | |
control method | Microcomputer laser scanning | Telescopic arm | Handle control, stepless speed change |
Control effect | Plane, slope or double slope | Size and weight | |
Cleaning system | Dimensions | 3720 × 2971 × 2702mm | |
power | Hydraulic motor | weight | 2650kg |
