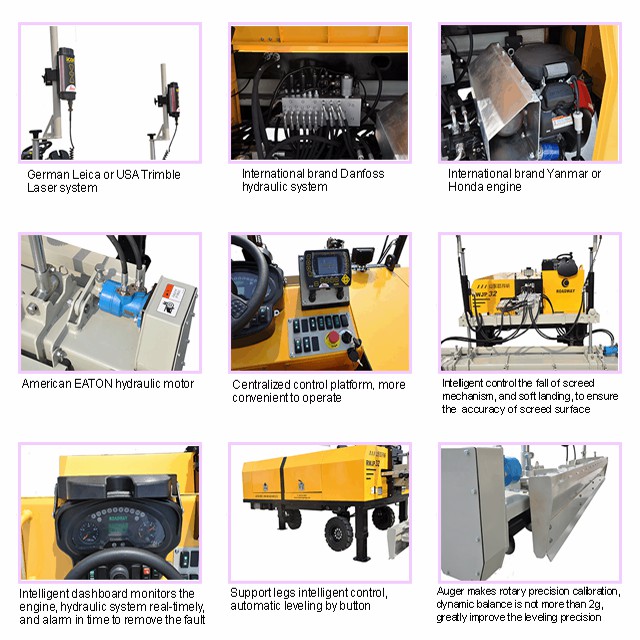

Features Overview
Technical Parameters
Engine | The Max. perssure of inlet | 0.5MPa | |
Model | HONDA GX690 | Screed head | |
Type | Gasoline engine, liquid cooled, 4 stroke, double cylinder | Type | Laser self-leveling |
Power | 22.5hp / 3600rpm | Width | 2500mm |
Fuel tank volume | 60L | Paving type | With auger |
Lubricant L | 1.9L | Auger force | Hydraulic motor |
Fuel consumption | 370g / kWh | Exciting force | 1000N |
Running device | Vibration frequency | 50Hz | |
Drive | 3 Hydraulic drive moter | Height of screed head | 400mm |
Running mode | Straight direction or transverse direction | Control accuracy | ± 1.5mm |
Wheel | Antiskid tyre | Operation mode | |
Outrigger | Four legs, self-leveling | Chair position | Ride-on forward type |
Driving speed | 0-3.6km / h | Forward and reverse | Handle control, stepless speed walking |
Laser control system | Steering | Steering wheel | |
Control type | Microcomputer laser scan | Telescopic arm | Handle control, stepless speed walking |
Control effect | Flat, slope or double slope | Size and weight | |
Cleaning system | oOutline dimension | 3720 × 2971 × 2702mm | |
Power | Hydraulic motor | Weight | 2650kg |
