Concrete Laser Screed( Boom type)RWJP31

Leveling width 3850, outrigger length 6000, leveling head 360 ° rotation

Quantity:

Features Overview

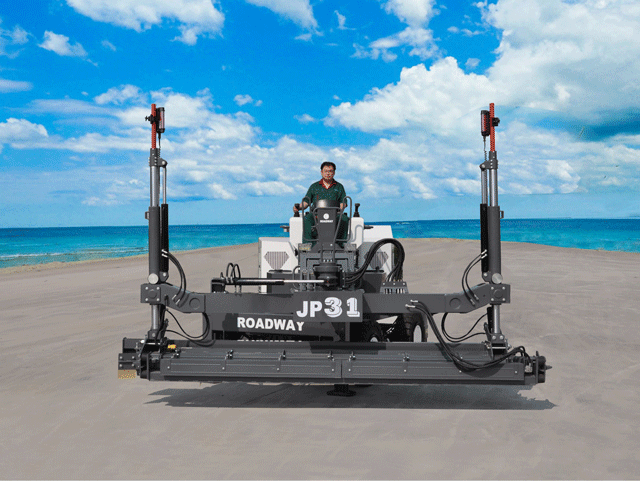

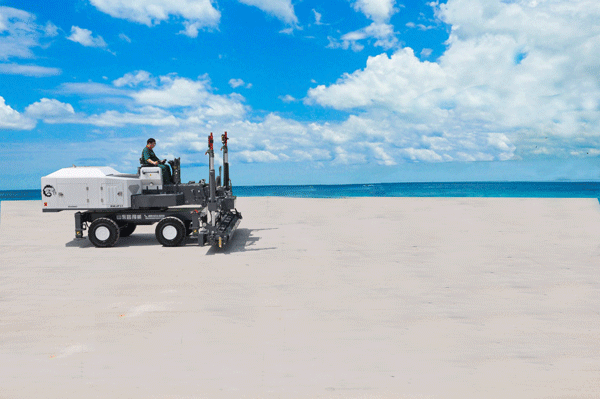

确定版伸缩臂激光整平机确定版伸缩臂激光整平机伸缩效果图

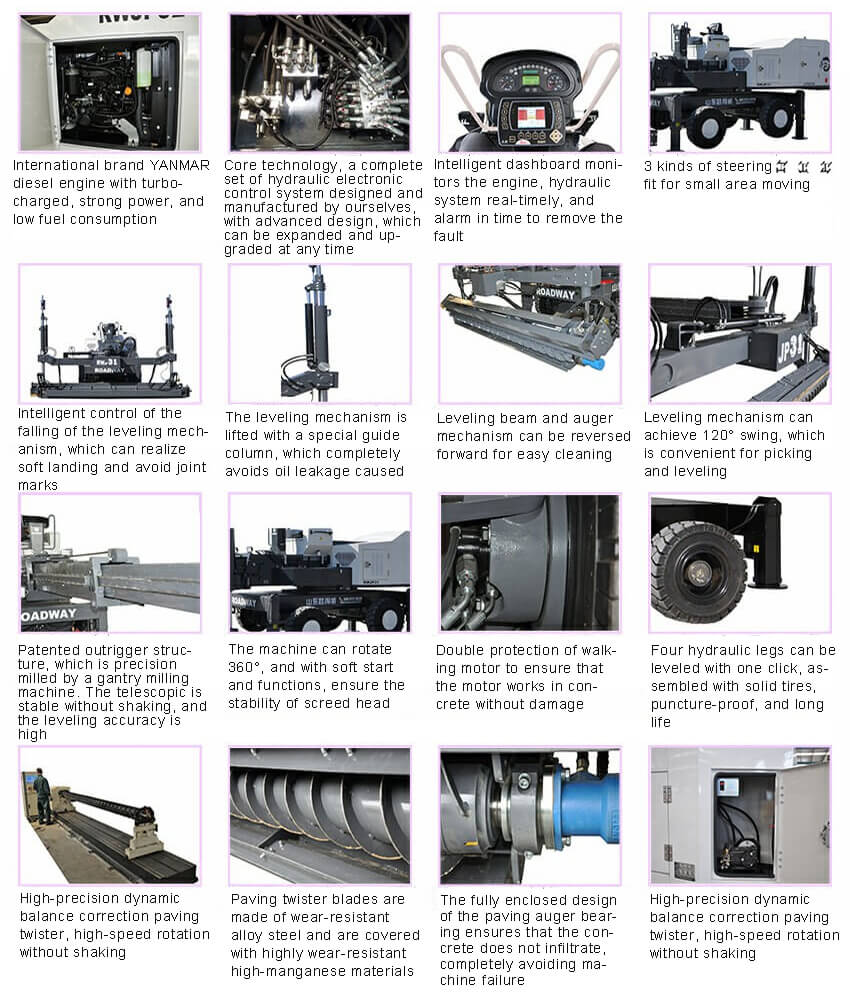

RWJP31-31B细节图英文版





Technical Parameters

Engine


Screed head


Model

Yanmar

Type

Laser self-leveling

Type

Diesel engine, liquid cooled, 4-stroke, four-cylinder

Width

3850mm

Power

63.9kw / 2500r / min

Paving type

With auger

Engine oil volume

10.2 / 5.7L

Auger force

Hydraulic motor

Fuel consumption

252g / kWh

Exciting force

3000N

Running device


Vibration frequency

60Hz

Driving

4 Hydraulic drive motor

Swing angle

± 45 °

Steering

Front wheel / four-wheel / crab-shaped turn

Screed head control

Ratio control

Wheel

Non-slip tire

Height of screed head

560mm

Outrigger

Self-levelling, four legs

Control accurary

± 1.5mm

Driving speed

0-8km / h

Operation mpde


Working speed

22m² / min

Chair position

Ride-on forward type

Laser control system


forward and reverse

Handle control, stepless speed walking

Control type

Microcomputer laser scan

Steering

Hydraulic intelligent control

Control effect

Flat, slope or double slope

Telescopic arm

Handle control, stepless speed walking

Cleaning system


Size and weight


Power

Hydraulic motor

Outline dimension

5600 × 4375 × 3575mm

The max. perssure of inlet

0.5MPa

Weight

8200kg

Fuel tank volume

150L
