Product Overview

Share to:

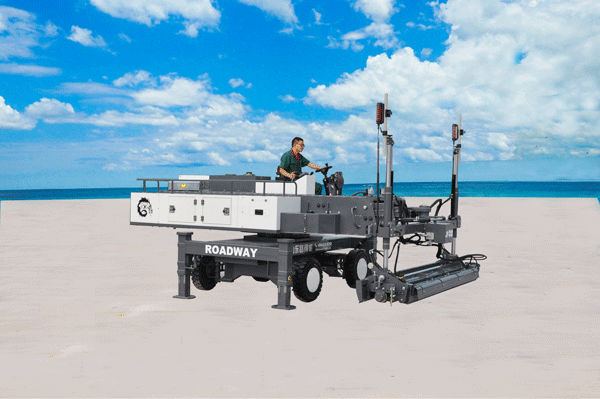

Concrete Laser Screed( Boom type)RWJP32

Leveling width 3000, outrigger length 6000, leveling head 360 ° rotation
Quantity:

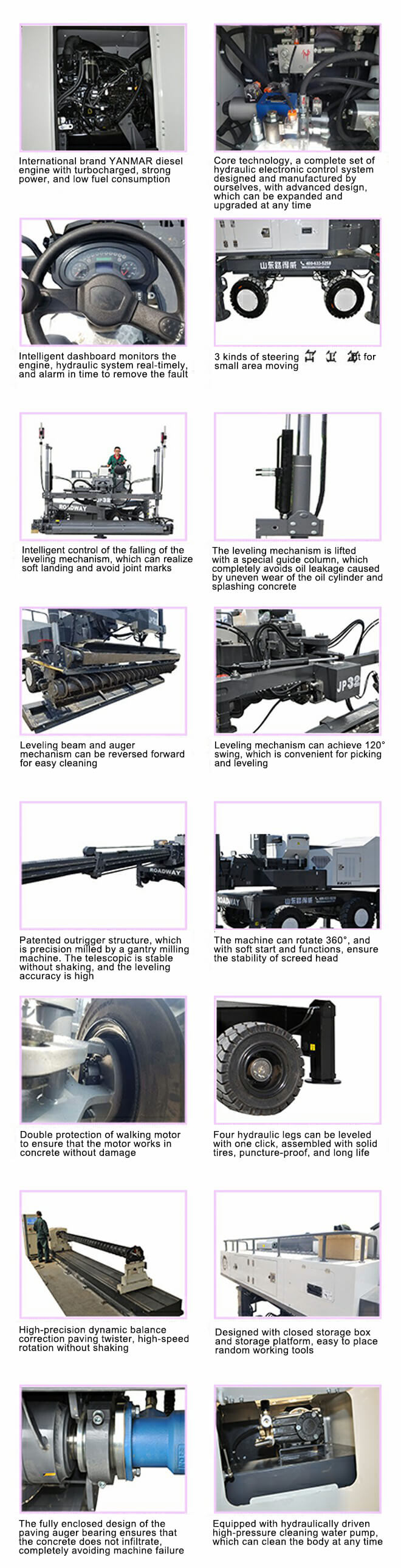

Features Overview

RWJP32旋转RWJP32英文版2021.05.31 (1)



Technical Parameters

Engine


Vibration frequency

60Hz

Model

YANMAR

Swing Angle

±45°

Type

Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder

Screed head control

Ratio control

Power

35kW/3000rpm

Height of screed head

500mm

Engine oil volume

6.0L

Control accuracy

±1.5mm

Fuel consumption

261g/kwh

Laser control system


Running device


Control type

Microcomputer laser scan

Driving

4 Hydraulic drive motor

Control effect

Flat, slope or double slope

Wheel

Antiskid tyre

Operation mode


Steering

Front Wheel/ 4-Wheel/ Crab-shaped turn

Chair position

Ride-on forward type

Outrigger

4 legs, Self-leveling

Forward and reverse

Hand control, stepless speed walking

Working Speed

20㎡/min

Telescopic arm

Hand control, stepless speed walking

Driving Speed

0-6km/h

Steering

Steering wheel

Screed head


Cleaning system


Type

Self-leveling

Power

Hydraulic motor

Arm Length

6000mm

Theoretical flow

20L/min

Width

3000mm

The Max pressure of inlet

0.5Mpa

Paving type

With auger

Rated pressure

7MPa

Auger force

Hydraulic motor

Fuel Volume

100L

Exciting force

3000N

Outside size(Working)

4500×3500×2500mm

Weight

5500kg
