Concrete laser screed RWJP14

Sliding screed head, gasoline engine power
Availability:
Quantity:

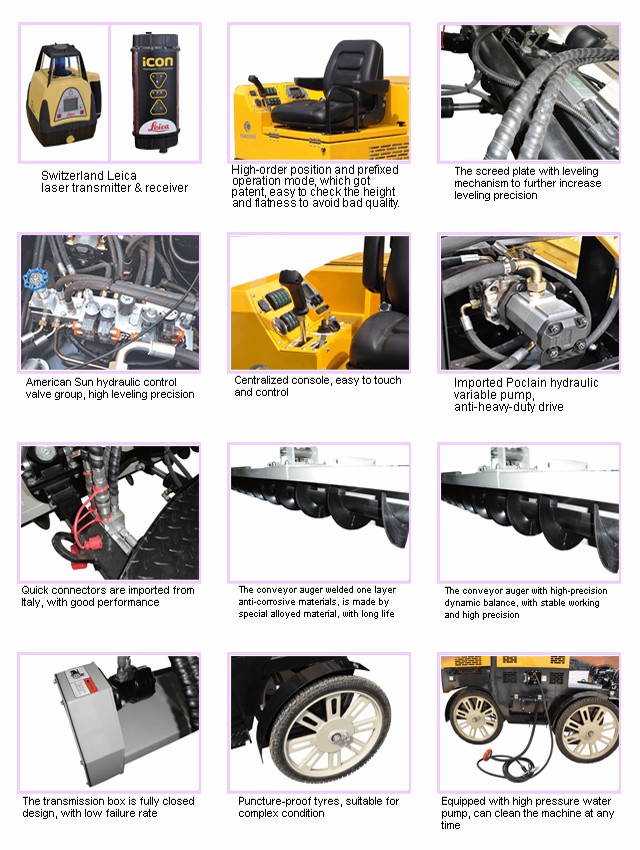

Features Overview

RWJP14RWJP14英文特征概述(1)

Technical Parameters

Engine


Screed system


Model

HONDA GX630 electric start

Screed head type

Swing type

Type

Gasoline engine,air-cooled, 4 stroke, OHV, double cylinder

Width

2500mm

Power

20HP / 3600rpm

Paving type

With auger

Fuel tank volume

40L

Auger force

hydraulic motor

Fuel consumption

313g / kWh

Exciting force

500N

Running system


Vibration frequency

50Hz

Drive

4 Hydraulic drive motor

Screed plate height

350mm

Running speed

0-35m / min

Operation mode


Laser control system


forward and reverse

Hand grip control, stepless speed walking

control method

Microcomputer laser scan

Steering

Hydraulic control

Control effect

Flat, slope or double slope (3D)

Cleaning system


Size and weight


Power

Hydraulic motor

Outline dimension

2717 × 2760 × 2380mm

Theoretical flow

20L / min

Weight

1200kg

Rated pressure

7MPa
