Concrete laser screed (Walk-behind electric type) RWJP21B

Electric work, three-wheel design, suitable for female workers
Availability:
Quantity:

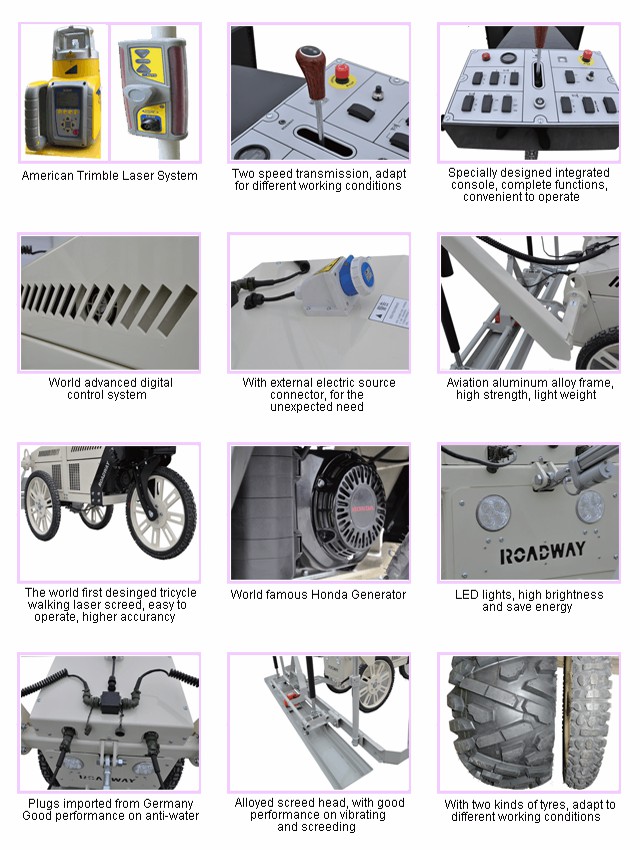

Features Overview

RWJP21BRWJP21B英文特征概述(1)

Technical Parameters

Engine


Screed head


Model

HONDA generator set

Type

Electrical control, self-leveling

Power

2KVA

Width

2500mm (standard) / 2000mm (optional)

Fuel tank volume

14.5L

Exciting force

500N

Running system


Vibration frequency

50HZ

Driving

electric motor

Laser control system


Running type

Electric control, stepless speed

Control type

Microcomputer control

Running speed

0-36m / min

Size and weight


Working speed

5m / min

Outline dimension

2860 × 2622 × 1980mm

      Wheel quanity             3

Weight

395kg


Product Video
