You are here: Home » Product » Floor construction machinery » Concrete laser screed » Walk-behind concrete laser leveler » RWJP23 » Concrete laser screed(Walk-behind fully hydraulic type)RWJP23

Product Overview

loading

Share to:
sharethis sharing button

Concrete laser screed(Walk-behind fully hydraulic type)RWJP23

Full hydraulic work
Availability:
Quantity:

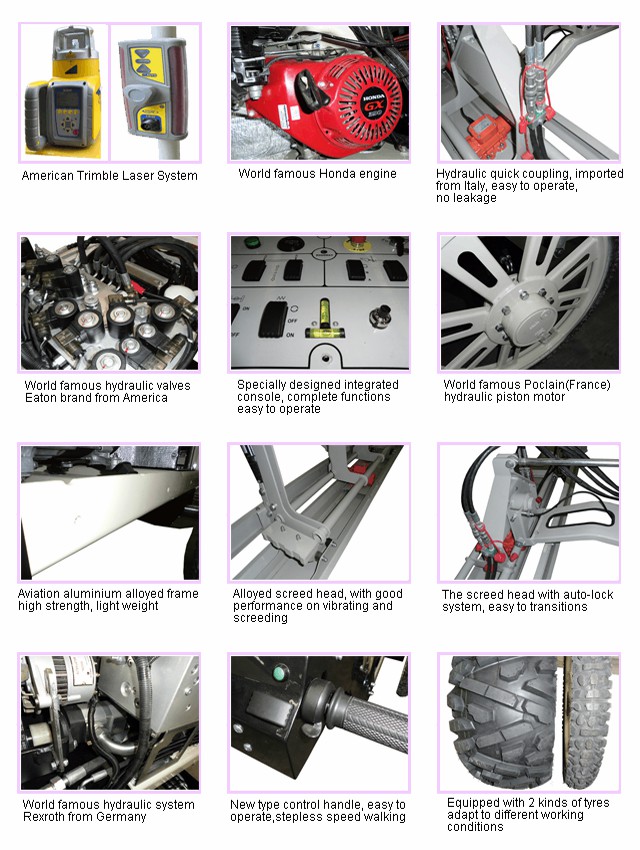

Features Overview

RWJP23RWJP23英文特征概述(1)

Technical Parameters

Model

HONDA Engine

Type

Hydraulic control,self-leveling

Power

13HP

Width

2500mm (standard) / 2000mm (optional)

Fuel tank volume

6.5L

Exciting force

500N

Running system


Vibration frequency

50HZ

Drive

 hydraulic pump and motor

Laser control system


Way of walking

Handle control, stepless speed

Control type

Microcomputer control

Driving speed

0-50m / min

Size and weight


Working speed

5m / min

Outline dimension

2740 × 2695 × 1980mm



Weight

380kg


Product Video
