Concrete laser screed(walk-behind fully hydraulic type) RWJP23B

Full hydraulic work, three-wheel design, suitable for female workers

Quantity:

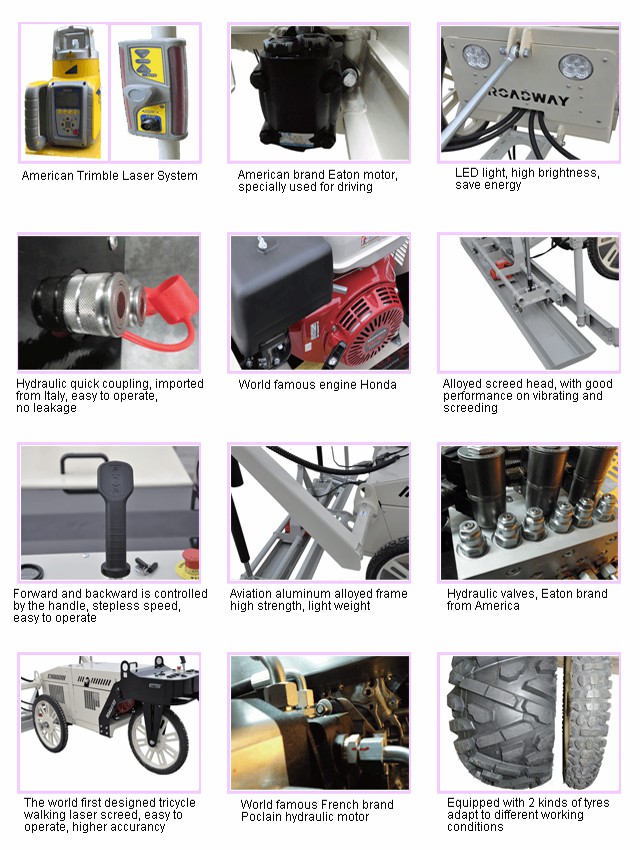

Features Overview

RWJP23BRWJP23B英文特征概述(1)

Technical Parameters

Engine


Screed head


Model

HONDA Engine

Type

Hydraulic control, self-leveling

Power

13HP

Width

2500mm (standard) / 2000mm (optional)

Fuel tank volume

6.5L

Exciting force

500N

Running system


Vibration frequency

50Hz

Driving

Hydraulic pump and motor

Laser control system


Running type

Hydraulic control, stepless speed

Control method

Microcomputer control

Running speed

0-50m / min

Size and weight


Working speed

5m / min

Outline dimension

2780 × 2662 × 1980mm

      Wheel quanity             3

Weight

410kg
