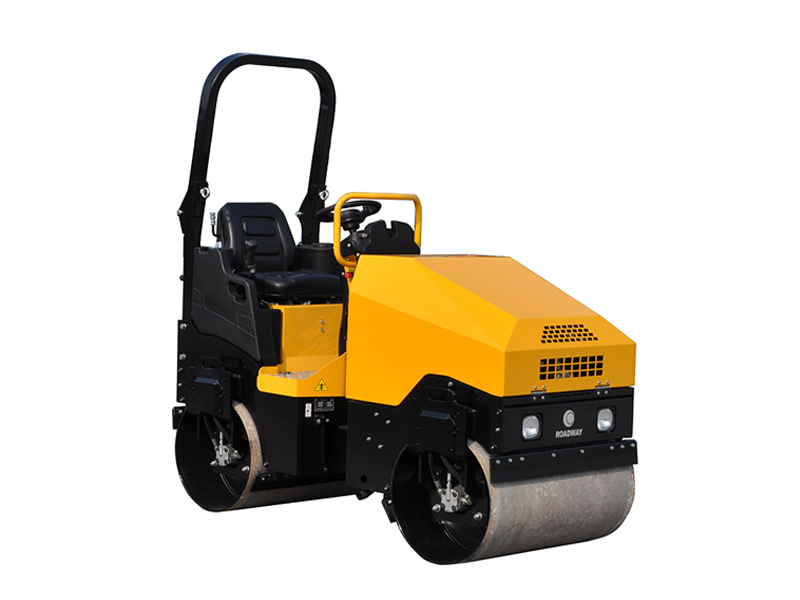

Driving roller RWYL51BC

Yanmar diesel engine power, two -wheeled hydraulic vibration
Availability:
Quantity:

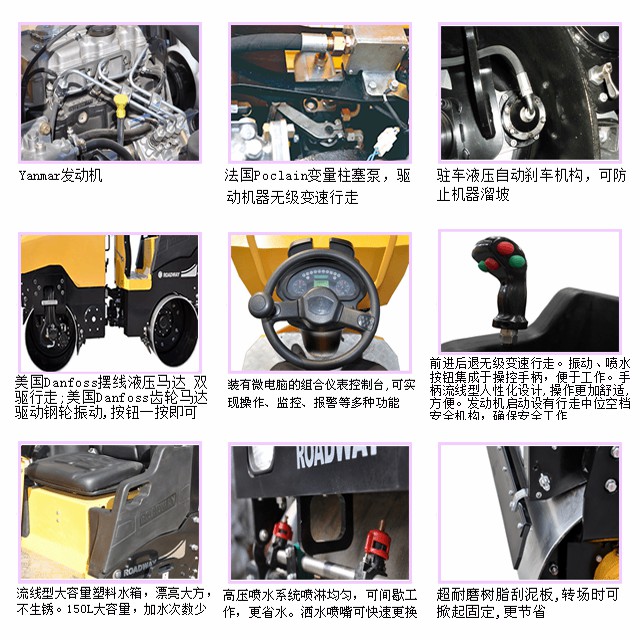

Feature overview

Rwyl51bcRWYL51BC Features Overview


technical parameter

walk


Lubricating oil

2.7L

speed

0-8km/h

Fuel consumption

286g/kwh

Steering radius

1900mm

Fuel tank capacity

30L

Theoretical climbing ability

30%

Dimensions


Compact


Steel wheel width

900mm

Static load

80/85n/cm

Steel wheel diameter

560mm

Nominal amplitude

0.5mm

Wheelbudie

1520mm

Vibration frequency

65Hz

Chief

2140mm

Exciting force

2 × 25KN

Total width

980mm

Water tank volume

150L

Total height

2230mm

engine


Package dimensions

2340 × 1138 × 1820mm

model


           Yanmar

weight


type

Diesel engine, water -cooled 4 rush range, three cylinders

Work weight

1700kg

power

    20HP/3000rpm



Friendly reminder: Due to the continuous improvement of the product, the content listed in this table cannot be changed simultaneously with the actual product. Therefore, this table cannot be identified as an attachment to the purchase contract. If necessary, technical parameters must be stated in the purchase contract.
