Product introduction
High -altitude logging vehicles are used for the repair of tall trees in the streets and gardens, the removal of power supply, telecommunications elevated lines and street lights, and the removal of the branches behind the houses, especially the rescue and disaster relief after the trees are blown by the wind. Essence
Dejection®Create a new logging technology, while drawing on the concept of robotic design, multi -activity joint work, integrating high -tech technology innovation design such as intelligent control, hydraulic pressure, and machinery. Workers use high -altitude operating vehicles to increase the hidden safety hazards to repair branches, and greatly improve work efficiency.
The car adopts the JAC chassis, which is perfectly integrated with the logging arm to achieve a rapid response of logging operations.
Dejection®The car has declared a number of invention patents to the State Intellectual Property Office.
Solemnly declare: The high -altitude logging vehicle is a new product. Lukeway has declared a number of patents. Without the written permission of Lu Dewei, any company and individuals make, promise to sell, sell, use in technology and appearance with the car with the car with the car The same or substantial equipment shall bear the corresponding legal responsibility.

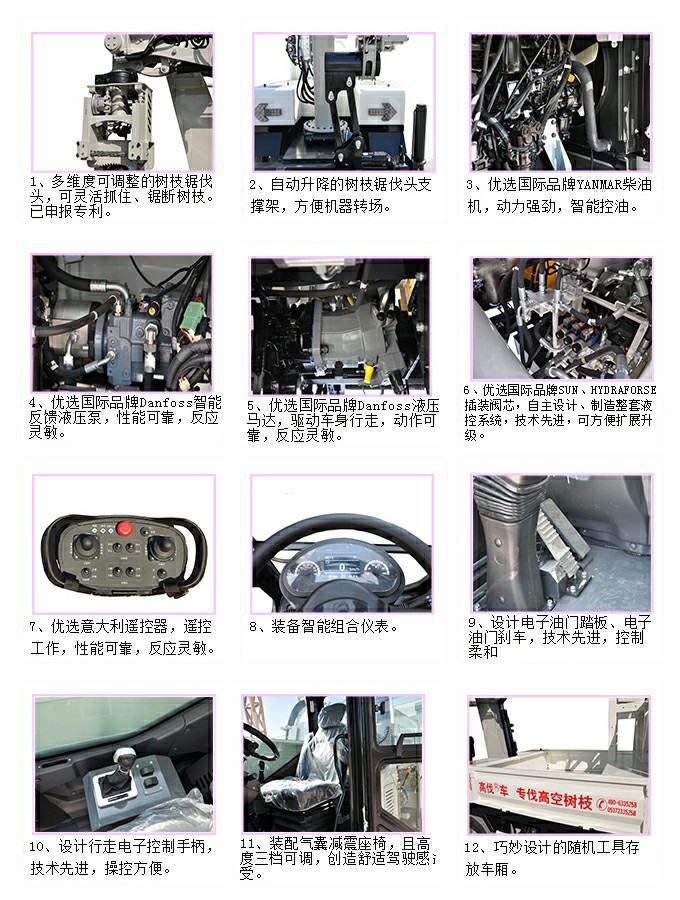

Feature overview
Technical parameter
model | RWQ811 | ||
Lubble | Turning radius | 6500mm | |
Diameter | φ200mm (customized) | Turning method | steering wheel |
Wingspan height | 12M | Number of drivers | 1 |
Sawing knife speed | 3200rpm | Axis | 2 |
engine | Wheelbase | 2800mm | |
model | Yanmar 4TNV98CT | Wheelbudie | 前1610mm, latter 1540mm |
type | diesel engine,4 -cylinder, national IV | Number of tires | 6 |
Rated power | 53.7kw/2100rpm | Tire specification | 7.0R16 |
Fuel tank volume | 120L | Size and quality | |
Dedicated chassis | Quality | 5850kg | |
Driving speed | 10-30km/h | Total quality | 6100kg |
Climbing | 30%(MAX.) | Appearance | 5580 × 2090 × 2900mm |
Optional configuration | Generator, cabinet air conditioner, electric oil saw, gasoline engine oil saw |
Friendly reminder: Due to the continuous improvement and upgrading of the product, the content listed in this table cannot be changed simultaneously with the actual product. Therefore, this table cannot be identified as an attachment to the purchase contract. If necessary, technical parameters must be stated in the purchase contract.
