Product introduction
Milling and shaving for hot -melt or cold -sprayed road marks, and milling groove operations for embedded highway marking.
This machine is specially designed for the construction of the highway labeling line, which combines a number of new technologies to achieve the integration of milling, strong rolling brush cleaning, negative pressure recovery, and waste storage. , High work efficiency. The scientific design of the milling mechanism has the following three characteristics: 1. Milling drums work with the road to achieve uniform depth of milling; 2. Milling is high and can be controlled within 0.2mm. 3. The coating of the marked line is not sticky, and there is no need to clean it frequently.
The aircraft has declared a number of patents to the State Intellectual Property Office.

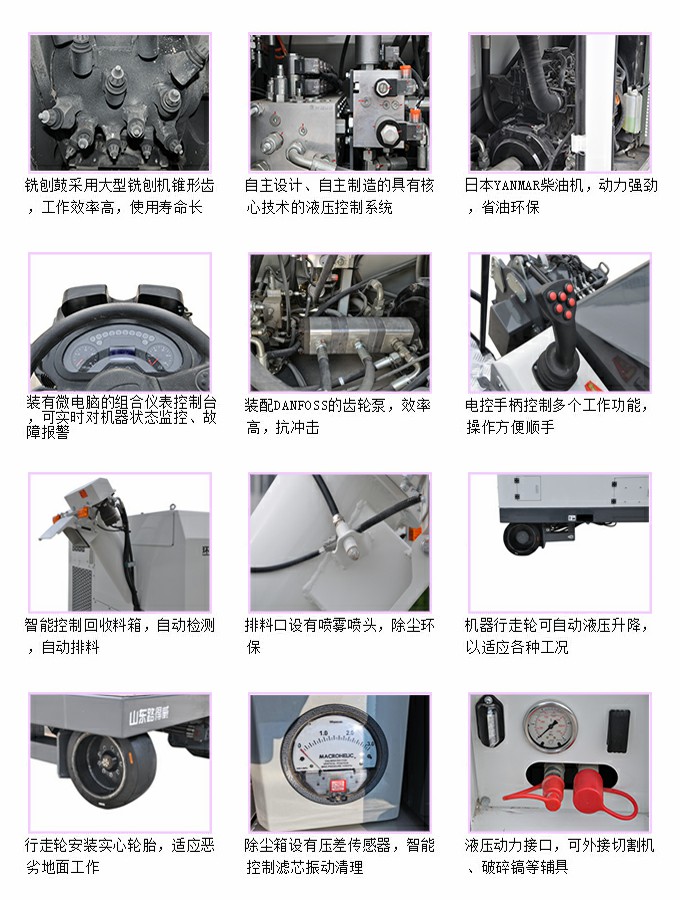

Feature overview
Technical parameter
Milling | Reservoir | ||
Milling width | 350mm | Volume | 1M³ |
Milling depth | 0-10mm | Time | 3 minutes |
Milling accuracy | 0.2mm | Filter material | Film Self -cleaning paper filter element |
Milling diameter | 460mm | Filter element cleaning | High -voltage air anti -blow |
engine | speed | ||
model | Yanmar, 4tnv88 | Milling speed | 0-15m/min |
type | diesel engine,4 -cylinder | Walking speed | 0-5km/h |
emission | 国Ⅳ | Size and weight | |
power | 35KW/3000rpm | Maximum shape size | 4020×1820 × 1920mm |
Fuel tank | 200L | Air load weight | 3800kg |
Friendly reminder: Due to the continuous improvement and upgrading of the product, the content listed in this table cannot be changed simultaneously with the actual product. Therefore, this table cannot be identified as an attachment to the purchase contract. If necessary, technical parameters must be stated in the purchase contract.
