Feature overview

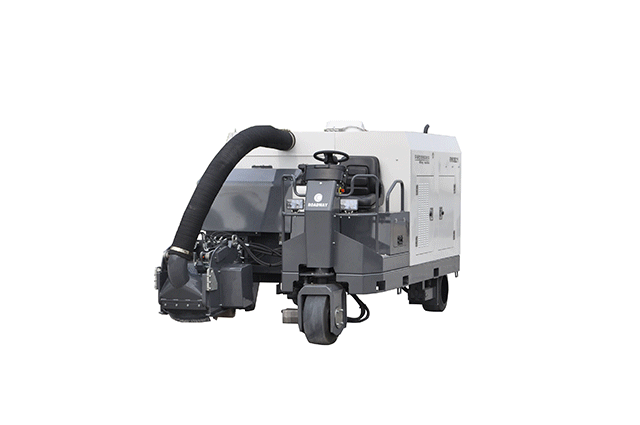

It is used for milling and roughening of concrete floors, removing surface scum or pollution, exposing aggregates for secondary concrete construction. The concrete floor will not have hollowing and cracking after milling.
It is an innovative designed machine that integrates milling, recycling, and dust removal. The ground is directly cleaned up, which is environmentally friendly and with a high construction efficiency.
Technical Parameters
Milling drum | Storage bin | ||
Milling width | 350mm | Bin Capacity | 1m3 |
Milling depth | 0-110mm | Discharge Time | 3 minutes |
Milling diameter | 460mm | speed | |
engine | Milling speed | 0-25M / min | |
model | 4TNV88 | Walking speed | 0-5km / h |
Types | Diesel engine, 4 stroke water cooling, 4 cylinder | Size and weight | |
power | 35kW / 3000rpm | Outline Dimension | 4020×1820 × 1920mm |
Fuel consumption | 252g / kWh | Weight | 3800kg |
Fuel Tank Volume | 200L |
