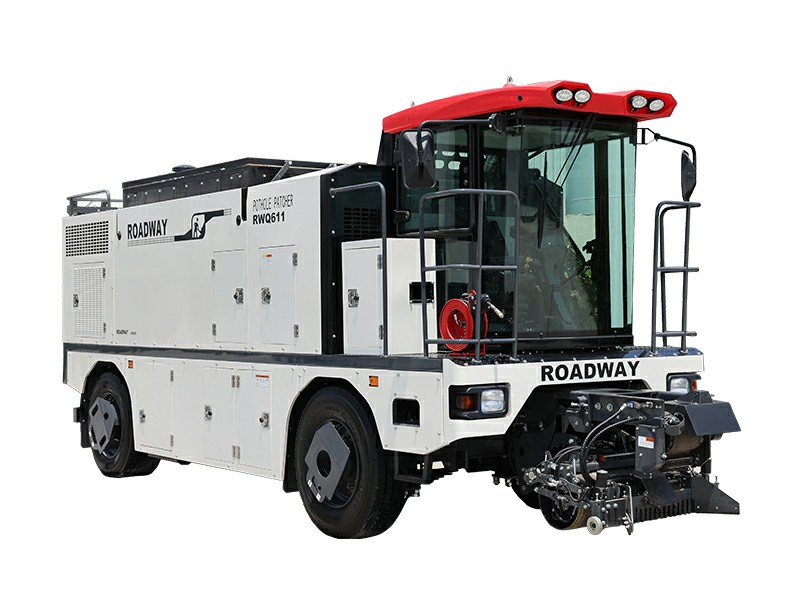

Pavement repair machine RWQ611

Availability:
Quantity:

Product Introduction

Used for rapid repair of damaged asphalt pavements and especially small pits on asphalt pavements. It can realize the integrated continuous and rapid construction of on-site milling, thermal regeneration, paving and compaction, and is an ideal new equipment for asphalt road maintenance.



Solemnly declare: This road repair vehicle is a new product. Ludwig Company has obtained a number of patents. Without the written permission of Ludwig Company, any company or individual manufacturing, promising to sell, sell, and use equipment that is the same or substantially the same as the vehicle in terms of technology and appearance, shall bear corresponding legal responsibilities.

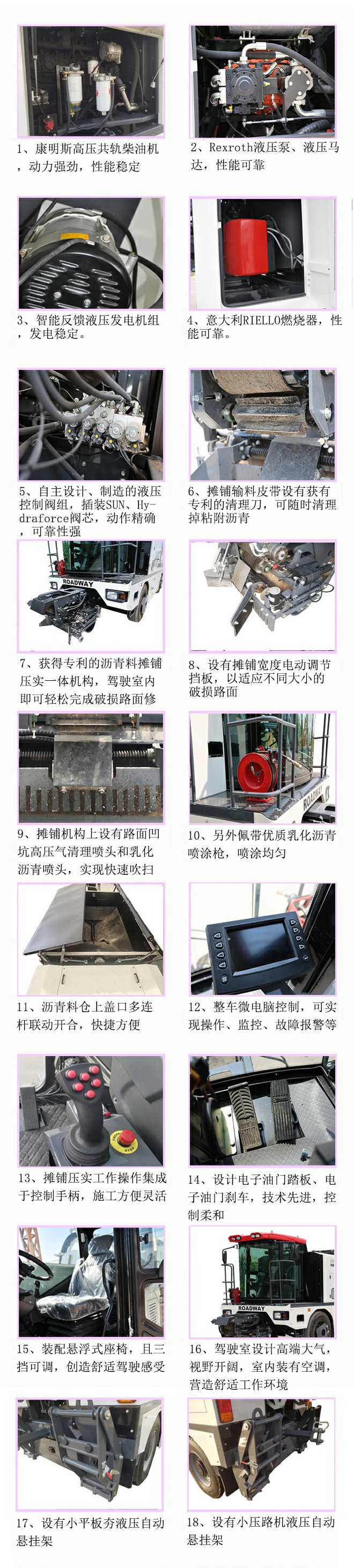

Feature Overview

Road repair vehicle RWQ611

Technical parameters

model

RWQ611

engine


power

Hydraulic motor

model

QSB6.7CS4-260C

External power port

Optional

brand

Dongfeng Cummins

Hydraulic power

2 routes

category

EU Stage IV

Power supply

Lock hook socket/25A/3P

Fuel system type

Electronically controlled high voltage common rail

Vehicle chassis


Fuel tank capacity

300L

Steering control

steering wheel

Material silo


Moving gear form

High and low speed two gears+Stepless speed control

Volume

3.0m³

Number of passengers

1people(C2The above driver's license)

Heating power

36KW

Tire specifications

295/80R22.5/after 385/55R22.5

Burner fuel consumption

3kg/h

Maximum design speed

50km/h

Combustion medium

diesel fuel

Brake system

Dual brakes for rear axle and hydraulic motor

Paving compaction mechanism


Overall machine size

7220×2150×2990mm

Working width

900mm

Curb mass

8680kg

Moving distances from front to back

1200mm

Total mass

16680kg

Swing range left and right

Selection


Lifting and dropping

280mm

RWYL22 single steel wheel roller

1 unit

Control method

Cab handle control

RWBH31 bidirectional flat plate tamp

1 unit

dynamo


RWBH24 One-way Tablet Tamp

1 unit

power

5KW

RWLQ31 hydraulic cutting machine

1 unit

Voltage

220V/50Hz

Hydraulic crushing pick

1 unit
