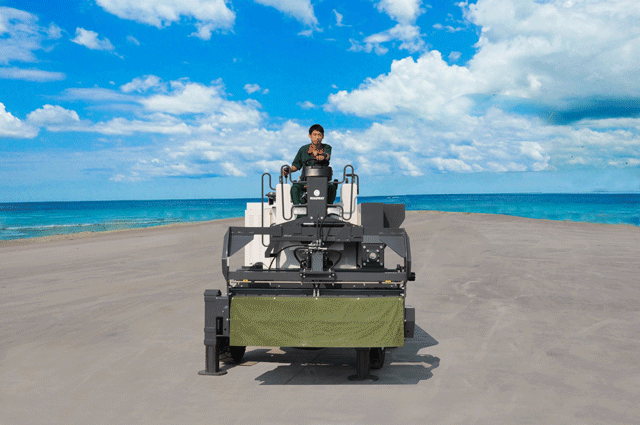

Spreader (Boom type Corundum Spreader) RWSL12

Diesel engine, hydraulic body automatic rotation, manual loading

Quantity:

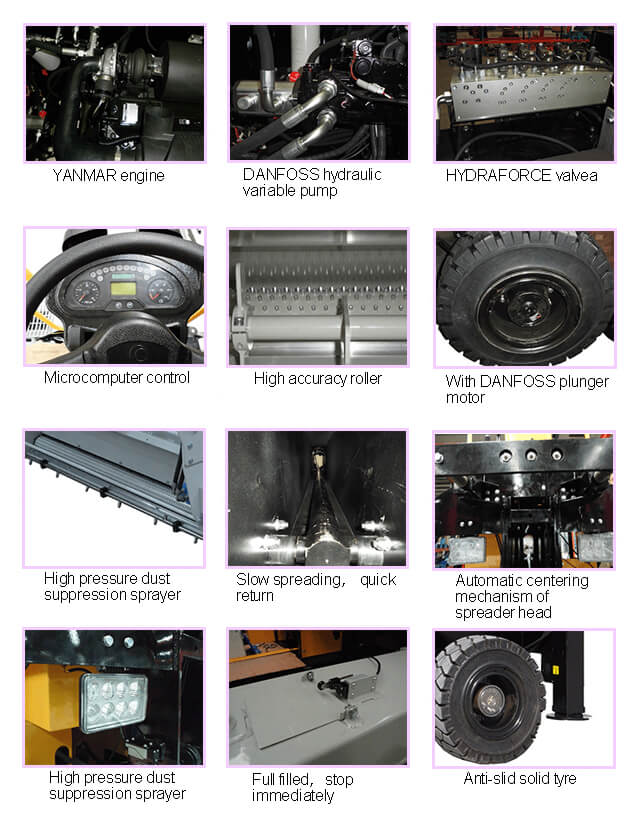

Features Overview


RWSL12特征概述英文版

Technical Parameters

Engine


Spreading width

1.8m

Model

Yanmar engine

Arm telescopic time

10S

Type

Diesel engine, four-stroke liquid-cooled, four-cylinder

Spread quantity

3-7 (adjustable)

Power

63.9kw / 2500r / min

Spreading hopper volume

160kg

Lubricant L

10.2 / 5.7L

Storage hopper volume

165kg

Fuel consumption

252g / kWh

Silo capacity

1000kg

Running


Feeding method

Automatic loading

Driving

4 hydraulic drive motor

Spreading hopper sliding

200mm

Steering

Two-wheel steering

Outrigger

4-legs, self-leveling

Wheel

Anti-slid solid tire

Fuel volume

135L

Driving speed

0-8km / h

Hydraulic oil volume

135L

Working speed

15m2/ min

Size and weight


Machine rotation

Hydraulic

Outside size

5250 × 2200 × 2500mm

Spreading


Weight

7500kg

Arm length

6.5m
