Stretch-type concrete laser leveling machine RWJP32

Tianting width 3000, stretching arm length 6000
Availability:
Quantity:

Feature overview

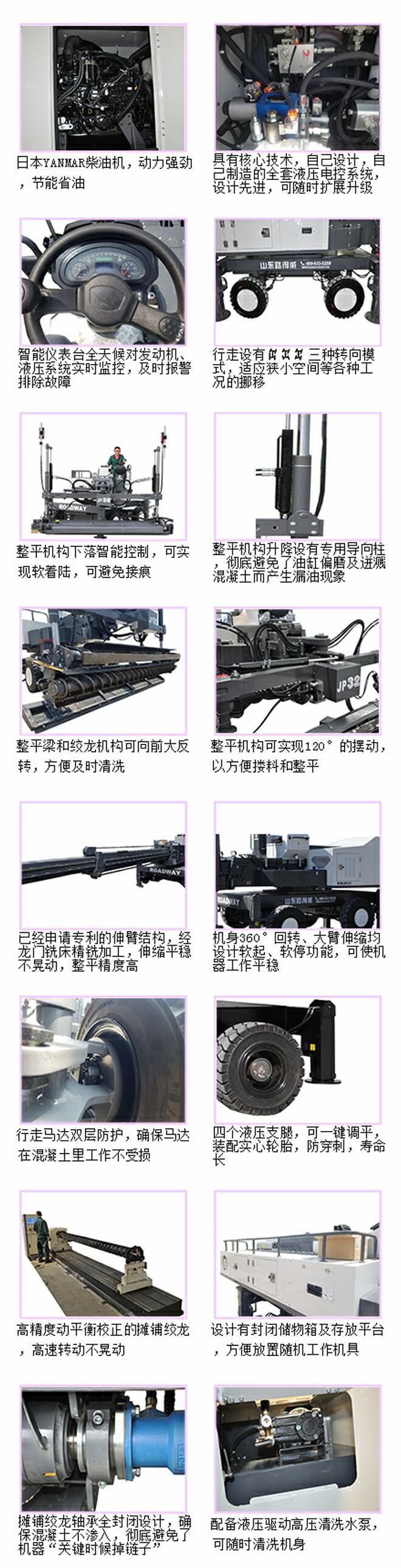

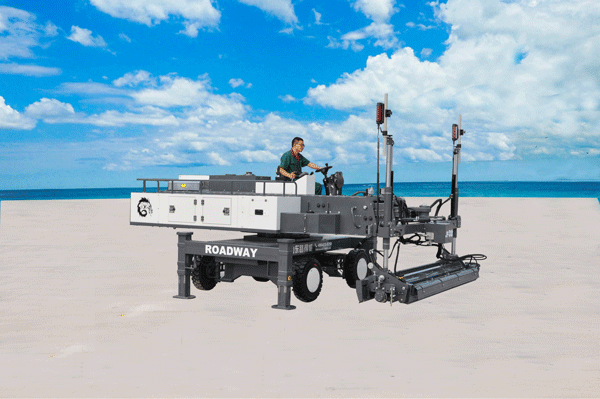

RWJP32 rotationRWJP32 detail Figure 2020.07.29

Technical Parameters

engine


Overall head


model

Yanmar

Types of

Laser

Types of

Diesel engine, 4 stroke water cold, four cylinders

width

3000mm

power

35kW / 3000R / min

Paving method

Twirl

Fuel capacity

100L

Stirring

Hydraulic motor

Fuel consumption

261G / KWH

Exciting force

3000n

walk


Vibration frequency

60Hz

drive

Hydraulic four-wheel drive

Swing angle

± 45 °

Steering mode

Front wheel / four-wheel / crab type

Chalet level

Proportional control

wheel

Solid tire

Height height

500mm

Leg

Four legs

control precision

± 1.5mm

Driving speed

0-6km / h

Operation method


Speed ​​of work

20m2 / min

Seat location

Front

Laser control system


forward, backward

Handle control, stepless speed

way to control

Microcomputer laser scanning

Steering

Steering wheel, hydraulic pressure

Control effect

Plane, slope or double slope

Telescopic arm

Handle control, stepless speed

Cleaning system


Size and weight


power

Hydraulic motor

Working maximum shape size

5135 × 3510 × 2150mm

Water mouth pressure

7MPA

weight

5500kg

Water tank capacity

100L
