model

Yanmar

Types of

Laser

Types of

Diesel engine, 4 stroke water cold, four cylinders

width

4000mm

power

63.9kw / 2500r / min

Paving method

Twirl

Fuel capacity

150L

Stirring

Hydraulic motor

Fuel consumption

252g / kWh

Exciting force

3000n

walk

Vibration frequency

60Hz

drive

Hydraulic four-wheel drive

Swing angle

± 45 °

Steering mode

Front wheel / four-wheel / crab type

Chalet level

Proportional control

wheel

Non-slip tire

Height height

560mm

Leg

Four legs

control precision

± 1.5mm

Driving speed

0-8km / h

Operation method

Speed ​​of work

22m2 / min

Seat location

Front

Laser control system

forward, backward

Handle control, stepless speed

way to control

Microcomputer laser scanning

Steering

Handle hydraulic intelligence control

Control effect

Plane, slope or double slope

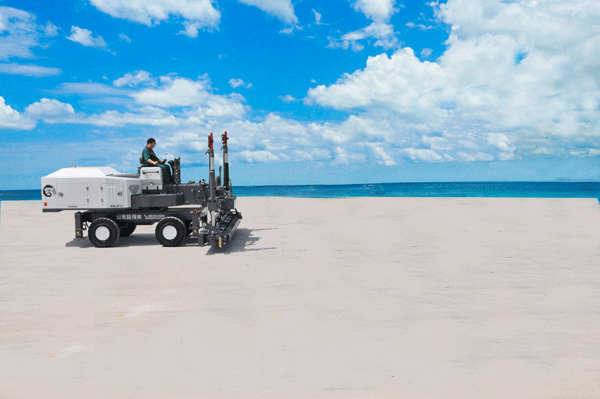

Telescopic arm

Handle control, stepless speed

Cleaning system

Size and weight

power

Hydraulic motor

Working maximum shape size

5600 × 4375 × 3575mm

Maximum water pressure of the input port

0.5MPa

weight

8200kg

Water tank capacity

150L
