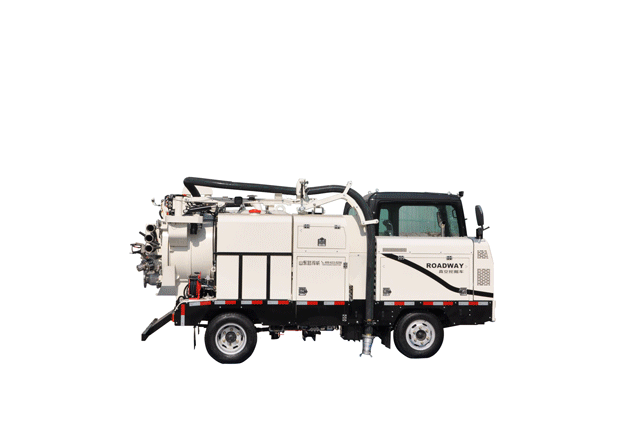

Vacuum pile driver RWQ721

Availability:
Quantity:

Product introduction


Solemn declaration: The vacuum pile car is a new product, and Ludewei has obtained a number of patents. Without the written permission of Lu Dewei, any company and individuals make, promise to sell, sell, use in technology and appearance with this with this technology and appearance and appearance. The same or the same equipment of the car shall bear the corresponding legal liability.


Feature overview

Vacuum excavation car

Vacuum excavation carRWKW11 Features Overview

Technical Parameters

model

RWQ721

Power conveying system


Dedicated chassis


Vacuum

-54KPa

Driving speed

10-30km/h

Excavation depth

2M/3.5M

Climbing

30%

Water absorption depth

4.5M

Turning radius

6500mm

Material storage tank accumulation

1.8m³

Turning method

steering wheel

Diameter

102mm

Number of drivers

1

High -pressure water system


Axis

2

Pump pressure

25MPa

Wheelbase

2810mm

Pump flow

21L/min

Wheelbudie

1610mm,back1540mm

Water tank volume

0.85m5

Number of tires

6

engine


Tire specifications

6.5R16

model

Yanmar 4tnv98t

Quality and size


type

Diesel engine, 4 -cylinder, National III

Quality

5400KG

rated power

63.9kw/2500rpm

Total quality

8000kg

Fuel tank volume

120L

Dimensions

5400 × 2090 × 2825mm

Optional configuration

Hydraulic cutting machine, hydraulic crushing pick, cab

Friendly reminder: Due to the continuous improvement and upgrading of the product, the content listed in this table cannot be changed simultaneously with the actual product. Therefore, this table cannot be identified as an attachment to the purchase contract. If necessary, technical parameters must be stated in the purchase contract.
