You are here: Home » Product » Compact machinery » Walk behind double drum vibratory roller » RWYL34B » Walk-behind double-steel roller RWYL34B

Product Overview

Share to:

Walk-behind double-steel roller RWYL34B

French heavy-duty variable displacement piston pump, American cycloid hydraulic motor driven variable speed walking, hydraulic steering, electromagnetic clutch vibration, weight 840kg

Quantity:

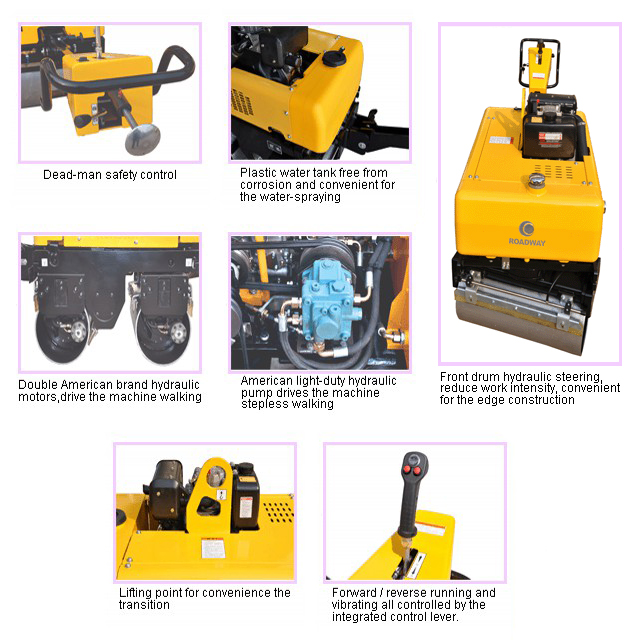

Features Overview

RWYL33RWYL34B英文特征概述(1)


Technical Parameters

Run


Type

Gasoline engine, air-cooled, single cylinder

Speed

0-3.5km / h (forward and reverse)

Power

13.0hp / 3600rpm

Steering angle

15 °

Fuel tank volume

6.5L

Climbing capacity in theory

25%

Lubricant L

1.1L

Compaction


Fuel consumption

313g / kWh

Static load

59/64 N / cm

Dimension


Nominal amplitude

0.5mm

Steel wheel width

680mm

Vibration frequency

65Hz

Steel wheel diameter

355mm

Exciting force

17kN

Tread

650mm

Water tank volume

38L

Total length (keep handrail level)

2460mm

Working


Total width

732mm

Drive

Variable piston pump, fixed hydraulic motor

Total height (keep handrail upright)

1800mm

Vibration

Mechanical drive, electromagnetic clutch

Packing size

1460 × 830 × 1910mm

Turn

Hydraulic cylinder

Weight


Engine


Working weight

840kg

Model

HONDA GX390
