Product introduction

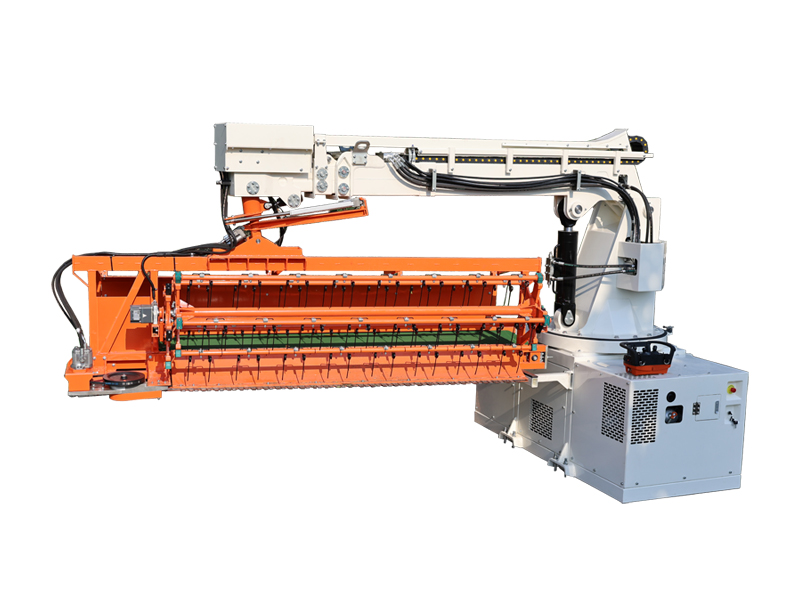

The central divider hedge trimmer is a new product innovatively designed by Ludeway's scientific research team. This machine integrates the functions of trimming, collection, and transportation. It is suitable for trimming hedges in the central divider of highways. Compared with the old rotary knife type trimmer, the broken branches and leaves are collected directly on the vehicle. There is no phenomenon of leaves flying on the road, so there is no need for manual secondary cleaning. It has the characteristics of high work efficiency and safe operation, and meets the safety and efficiency requirements of highway maintenance work.
This machine is also suitable for trimming municipal hedges.
This machine has applied for multiple invention and utility model patents to the State Intellectual Property Office. Ludeway will be held legally responsible for imitation and infringement.
Solemnly declare: The central divider hedge trimmer is a new product, and Ludeway Company has applied for a number of patents. Without the written permission of Ludeway Company, any company or individual that manufactures, offers to sell, sells, or uses equipment that is the same or substantially the same as this vehicle in technology and appearance shall bear corresponding legal liability.
Feature overview
Technical parameters
Model | RWLL11 | ||
Trimmer head | Stretch length | 5800mm (extended 3000mm) | |
Trim width | 2000mm (can be customized) | Swing angle | 0-150° |
trimming height | 1800-2800mm | Remote control method | Remote control or wire control |
Conveyor belt width | 500mm | engine | |
Machine head swing angle | 10°-15° | Model | HONDA GX390 (other brands optional) |
Angle of swing of auxiliary conveyor frame | ±25° | Type | Gasoline engine (optional diesel engine) |
Angle of up and down swing of auxiliary conveyor frame | ±15° | Power | 8.7KW/3600rpm |
Operation mode | Remote control or wire control | weight | |
Telescopic support arm | weight | 1400kg | |
expansion joint | 3 sections | Remarks: Equipped with truck front wheel tires to carry the load on one wheel2t or more (plus front leaf spring limiter) | |
Friendly reminder: Due to the continuous improvement and upgrading of products, the contents listed in this table cannot be changed simultaneously with the actual products, so this table cannot be regarded as an attachment to the purchase contract. If necessary, the technical parameters must be stated in the purchase contract.
